Machine Types
HORIZONTAL LATHES
A range with greater rigidity and better ergonomics, and customization options for the machines. Application engineering enables new functionalities such as intelligent tailstock, thermal compensation models of the SMART MANUFACTURING application option.
RESOURCES
GT5i
Horizontal Lathe
- Swing over bed: 1200/1400 (mm)
- Length: 1…24 (m)
- Max weight between points: 6,000-12,000 (kg)
- Head Power: 30/45 – 51/78 (kw)
- Torque: 6400/9500 – 14000/21600 (Nm)

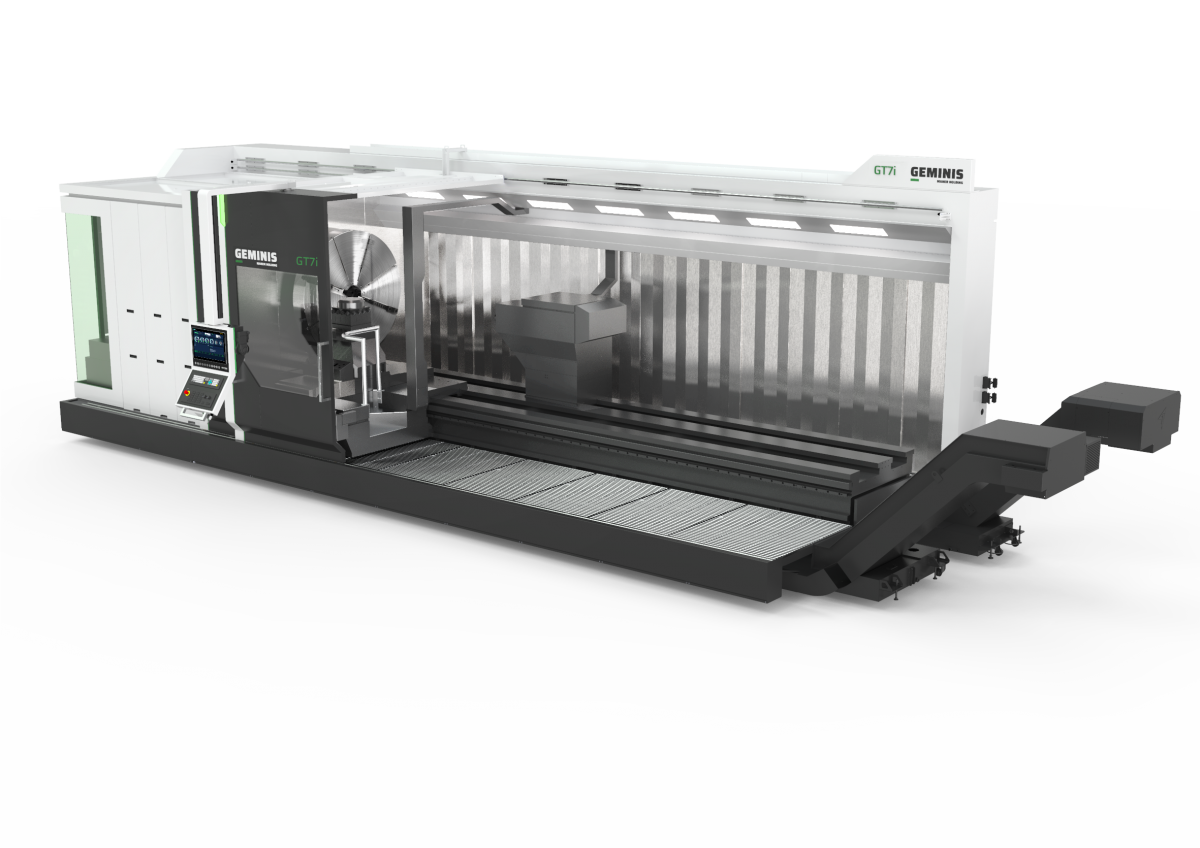

GT7i
Horizontal Lathe
- Swing over bed: 1600/1800 (mm)
- Length: 1…24 (m)
- Max weight between points: 12000 – 25000 (Kg)
- Headstock Power: 51/78 – 95/140 (Kw)
- Headstock Torque: 14000/21600 – 30000/44800 (Nm)

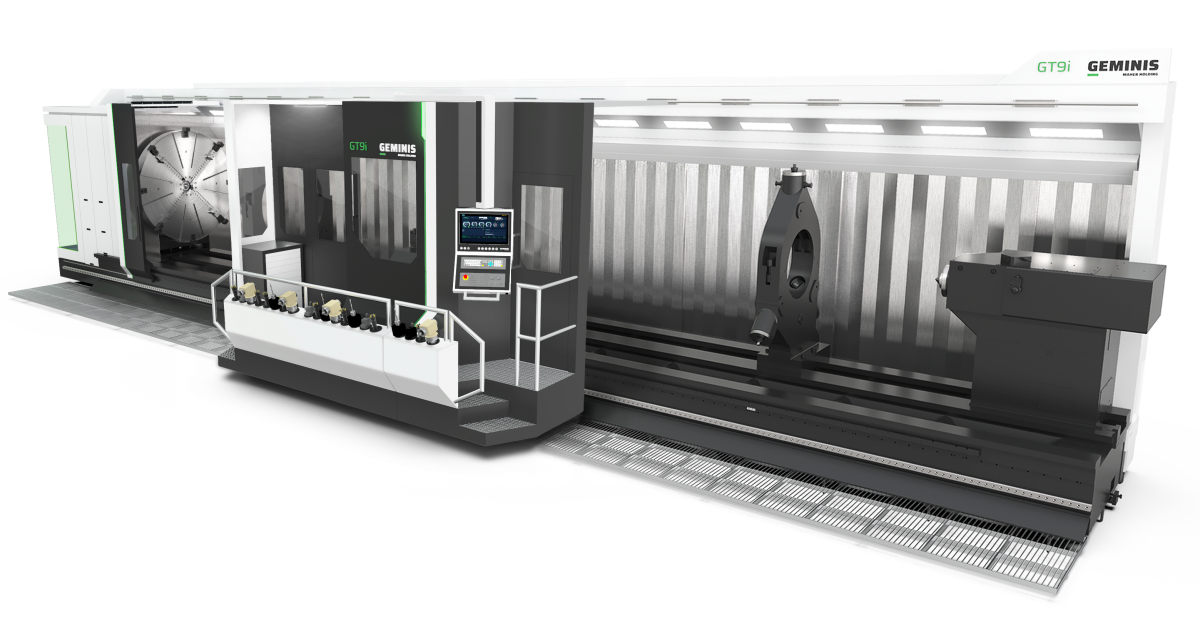

GT9i
Horizontal Lathe
- Swing over bed: 2000/2200/2400 (mm)
- Length: 1…24 (m)
- Max weight between points: 25000 – 60000 (Kg)
- Headstock Power: 95/140 – 150/221 (Kw)
- Headstock Torque: 30000/44800 – 72000/106000 (Nm)

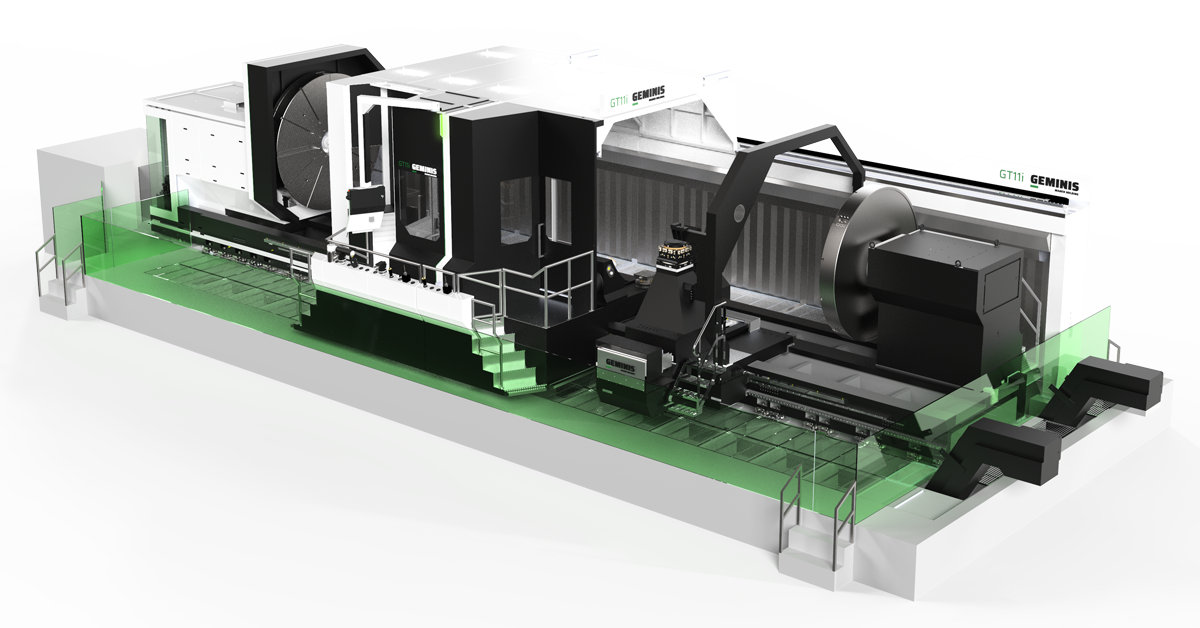

GT11i
Horizontal Lathe
- Swing over bed: 2400 – 3500 (mm)
- Length: 1…24 (m)
- Max weight between points: 45000-150000 (kg)
- Headstock Power: 113/166 – 182/272 (kw)
- Headstock Torque: 54000/79500 – 87300/130500 (Nm)
INTERESTED IN A MACHINE OR HAVE A QUESTION?
Whether you have a specific need in mind, or still in the planning stage, let’s talk. We can work together to find a solution to help your business achieve its goals.
